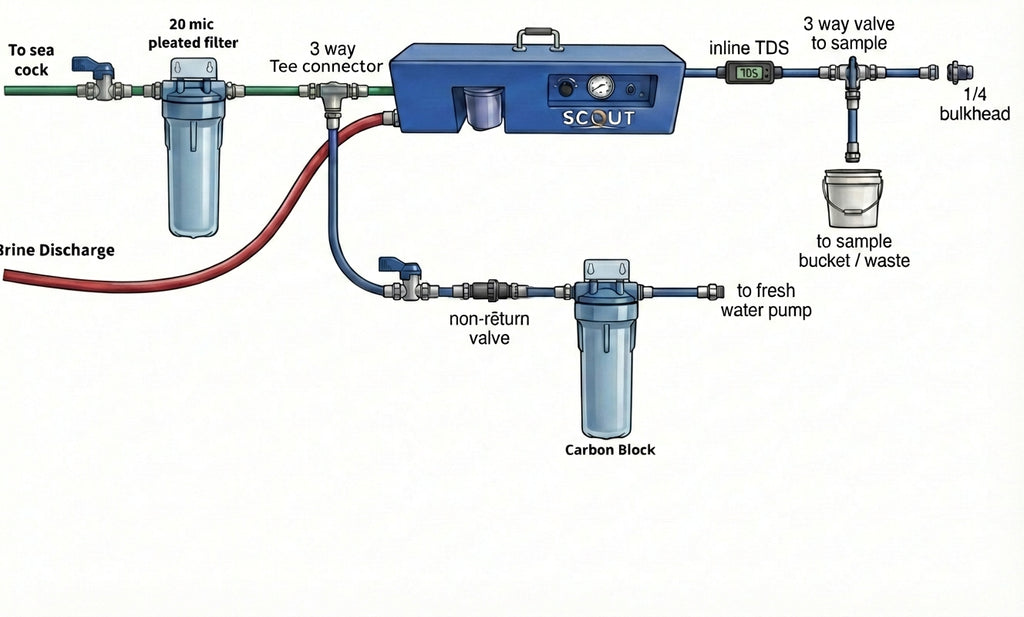

  • Diagram of a water filtration system with labeled components on a white background
Install Kit

Install Kit

$220.00 AUD

The Scout Install Bundle gives you everything needed to set up your LEDI Scout cleanly, safely, and with full freshwater-flush capability — all in one low-cost kit. Designed for boat owners, off-grid travellers, and anyone wanting a tidy, permanent-style installation without marine-chandlery markup. Every component is selected for reliability, simple DIY fitting, and full compatibility with all Scout 10 LPH and 20 LPH units.

* Compatible with submersible/ centrifugal pump model

Features

Complete Installation Kit

All key valves, fittings, hoses, and filtration components in one bundle.

Freshwater Flush Ready

Includes the correct 3-way ball valve and connectors for safe flushing.

Permeate Sampling & TDS Monitoring

Test your water before sending it to tank and integrate TDS monitoring easily.

Extra Filters Included

Additional Scout prefilters and twin 20-micron pleated filters extend protection.

DIY Friendly

Push-fit and threaded fittings make installation fast, clean, and tool-light.

Specifications

Compatible Models: Scout 10 LPH and Scout 20 LPH

Housing Size: 2.5” × 10”

Filter Rating: 20 micron pleated + two 5 micron Scout prefilters

Valves: 3-way flush valve, 3-way 1/4" sampling valve

What's included
  • 2 x 2.5" × 10" clear prefilter housing with mounting bracket
  • Twin pack of 20-micron pleated filters
  • 1x5 micron CTO filter
  • 2 x 2way ball valve
  • 1 x non return valve
  • 3-way 1/4" ball valve for permeate sampling
  • 3-way push-fit adapter for TDS monitoring (sensor sold separately)
  • 5 m inlet hose
  • 5 m brine/waste tube
  • 10 m permeate tube
  • 1/4" push-fit bulkhead fitting
  • 1/2" push-fit bulkhead fitting
  • 1/2" push-fit to 1/2" thread adapter

* we can source and provide other fittings that you may require. Give us a call.
