Why the 107SS Has a Reliability Reputation Problem

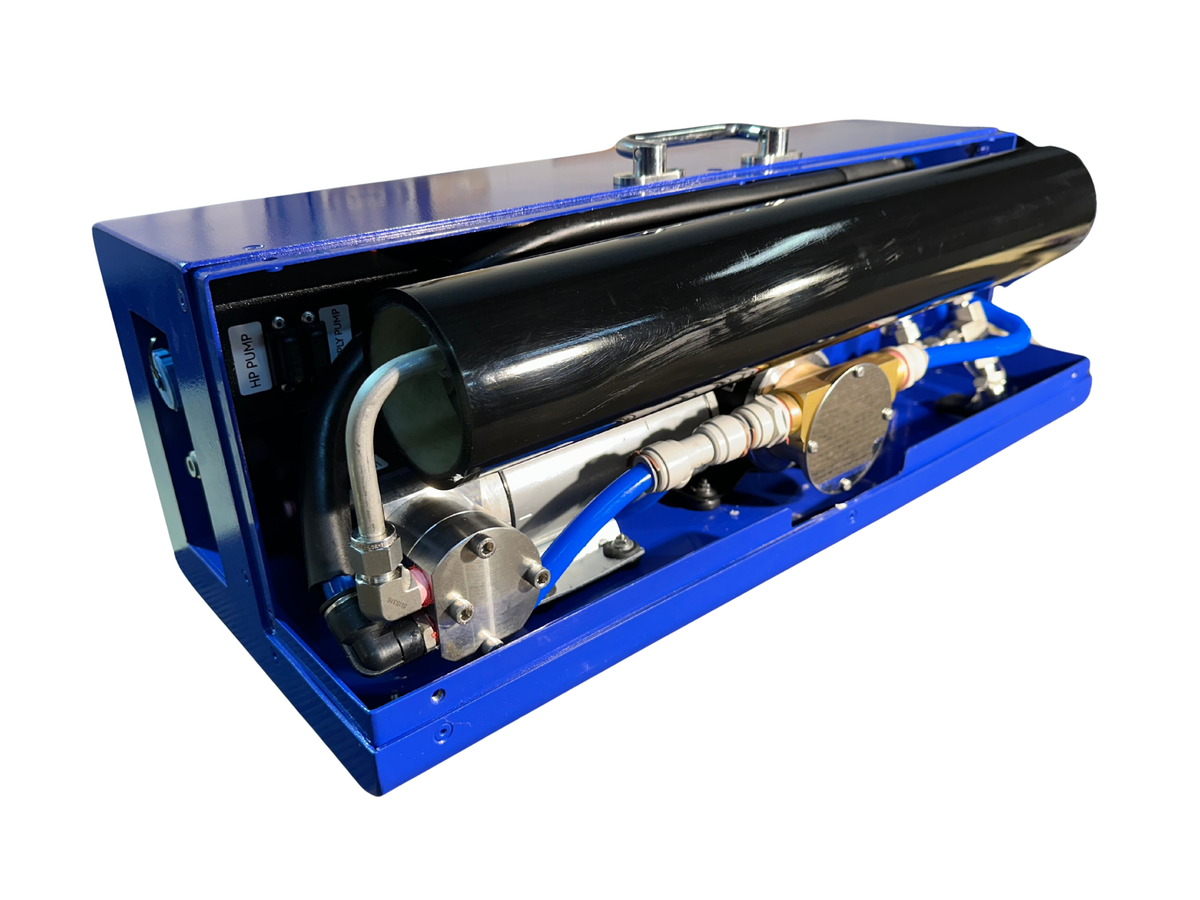

The Pumptec 107SS is the high-pressure pump at the heart of the LEDI Scout watermaker. It is a 316 stainless steel triplex plunger pump rated to around 800 PSI, built in the USA to commercial standards. That is the same class of pump used in far more expensive fixed watermaker installations.
Yet you will occasionally find forum posts calling it unreliable. Almost every one of those cases, when you dig into the thread, comes down to the same thing: the owner ran it for hundreds of hours, noticed a drop in output or a small leak, and concluded the pump was faulty. They had never changed the seals. At that point the pump was not failing. It was overdue for a scheduled seal replacement, the same way a diesel engine is overdue for an oil change. The pump was doing exactly what any pump under high-pressure salt water cycling will eventually do after extended use.
There are no 300-hour oil changes on the 107SS. There is no crankcase oil at all. What there is, after many hours of operation, is a straightforward seal and plunger replacement sequence that any owner can carry out with two service kits and basic tools.
What the 107SS Actually Is
The 107SS is a direct-drive triplex plunger pump. Three plungers, driven by a small motor, push water through a check-valve head at high pressure. The moving parts that wear are the seals around those plungers and, eventually, the plungers themselves. Everything else, the pump body, the head, the fittings, is 316 stainless and essentially indefinite in service.
Because the design is so simple and all-stainless, it handles seawater up to 35,000 ppm without corrosion issues, and it draws only 16 to 18 amps at 12V, which is why the Scout runs comfortably off a standard 12V house battery and 200 to 400 watts of solar, no generator needed. The pump's simplicity is precisely what makes it field-serviceable. There is no proprietary electronics inside it, no sealed module you have to send away. It is mechanical, and mechanics can be rebuilt.
The Two Service Kits and When to Use Them
LEDI stocks two service kits for the 107SS. The Pumptec Service Kit A ($248 AUD) covers the primary seal replacement, which is the first and most common service task. Kit B covers the plunger replacement, which typically comes later in the pump's life once the plungers themselves show wear.
The sequence works like this:
- Run the pump. Track your hours using the Scout's built-in hour meter.
- When output starts to drop or you notice the pump working harder to hold pressure, inspect and replace the seals using Kit A.
- If output does not recover after a seal replacement, or if inspection shows plunger wear, replace the plungers using Kit B.
- After rebuild, the pump returns to original performance. There is no "end of life" for the pump body itself.
The Scout's built-in hour meter is there specifically for this. You are not guessing when service is due. You are reading the meter, comparing it to your water conditions and output trend, and acting on real information. That is how professional watermaker operators manage their systems, and it is how the Scout is designed to be managed too.
How to Do the Rebuild
The 107SS rebuild is genuinely within reach of any owner who is comfortable with basic mechanical tasks. You do not need specialist training or marine engineering qualifications. The steps follow a logical sequence:
- Depressurise the system fully before opening anything.
- Disconnect the pump from the high-pressure head.
- Remove the seal retainers and extract the worn seals.
- Clean the seal seats carefully, as any grit here will shorten the life of the new seals.
- Install the new seals from Kit A, following the orientation shown in the kit documentation.
- Reassemble and test at pressure, checking for any weep around the head.
If the plungers also need replacement (Kit B), you remove them after the seals are out, swap them, and reassemble in the same sequence. The whole job can be done at anchor or on a beach with a small toolkit. That is not a marketing claim. It is the reason LEDI chose this pump for a system designed to be used far from a service centre.
If you want the full step-by-step, contact the team directly at info@ledi.com.au or call +61 494 562 668. You are dealing with a real person on the Gold Coast, not a call centre.
What Actually Kills a 107SS
Neglect is the primary cause of pump failure, not a design flaw. Here is what shortens pump life:
- Running with a blocked or overdue pre-filter. When the 5-micron pre-filter is clogged, feed pressure drops and the pump works against a starved inlet, which stresses the seals. Check the pre-filter cartridge ($25 AUD) regularly, every 10 to 20 hours in silty water, 30 to 40 hours in clean ocean.
- Running dry. The pump needs water flowing through it at all times. Never run it without a feed source connected.
- Skipping the freshwater flush after use. Salt residue left in the pump between sessions accelerates seal wear. Flush every time, without exception.
- Ignoring early signs of seal wear. A slight drop in output or a minor weep around the pump head is the system telling you Kit A is due. Act on it early and you protect the plungers too.
None of these failure modes are unique to the 107SS. They would shorten any high-pressure pump's life. What makes the 107SS stand out is that when the seals do wear, you fix it yourself with a $248 kit, rather than buying a replacement pump or shipping the unit back to a manufacturer.
For context, a complete replacement Pumptec 107SS pump is $1,550 AUD. A seal kit is $248. The arithmetic is straightforward.
Comparing This to Other Watermaker Pumps
Higher-end fixed watermakers sometimes use Clark pumps or energy-recovery systems that are more efficient per litre but are far more complex and expensive to service. The 107SS sits in a different category: it is a robust, fully serviceable, non-proprietary pump that any competent person can work on anywhere in the world. You can source parts through LEDI, and spares post Australia-wide and internationally, usually within one business day.
The Cat Pumps unit in the LEDI Nomad watermaker follows a similar philosophy, a direct-drive plunger pump, fully serviceable, no black-box electronics, just mechanics you can understand and repair. Both LEDI systems are built around this principle because it matters most when you are offshore and something needs attention.
A Note on Pre-Filter Maintenance and the Hour Meter
The Scout's built-in hour meter tracks total running time. Use it. Log it in a simple notebook alongside your pre-filter changes and any notes on output quality or pressure readings. This takes about 30 seconds per session and gives you a clear service history that will tell you, over time, exactly when Kit A is approaching.
The LEDI spares store carries everything you need: pre-filter cartridges, the Pumptec service kits, membranes, and consumables. There is no waiting for a dealer to order in a part. Order directly and it ships from the Gold Coast.
For related reading on keeping your whole system in good shape, see Watermaker Running Hours: What to Track and Why, Watermaker Pre-Filter: Why It Matters, and Marine Watermaker Maintenance That Prevents Failure.
Frequently Asked Questions
How often does the Pumptec 107SS need its seals replaced?
There is no fixed interval because it depends on hours run, water quality, and how well the pre-filter is maintained. Watch your hour meter and monitor output. A gradual drop in flow or pressure is the first sign that seals are due. Acting on it early, before performance falls significantly, protects the plungers and makes the rebuild simpler.
Can I rebuild the 107SS myself, or does it need a technician?
You can do it yourself. The rebuild uses Kit A for seals and Kit B for plungers. The process is mechanical, requires only basic tools, and can be completed at anchor or on a beach. LEDI's team can walk you through it if you have questions.
Is there any crankcase oil to change in the Pumptec 107SS?
No. The 107SS does not have a crankcase oil system. There are no 300-hour oil changes. The routine maintenance is pre-filter replacement, freshwater flushing, and periodic seal replacement using Kit A when output trends downward.
Where can I buy the Pumptec 107SS service kits in Australia?
LEDI stocks the Pumptec Service Kit A ($248 AUD) directly and ships Australia-wide and internationally from the Gold Coast. Contact info@ledi.com.au or call +61 494 562 668 to confirm which kit your system needs.
]]>
