The pre-filter is the first line of defence in any reverse osmosis watermaker, and it is the one part most people ignore until something goes wrong. Replacing it on schedule is the single cheapest thing you can do to protect an expensive RO membrane. This guide covers how pre-filters work, how often to change them, what happens when you skip it, and exactly which cartridges suit the LEDI Scout system.
What Does a Watermaker Pre-Filter Actually Do?
Before seawater or brackish water reaches your high-pressure pump and RO membrane, it passes through a sediment pre-filter. This cartridge traps suspended solids, sand, silt, biological matter, and other particles that would otherwise grind against the pump internals and foul the membrane surface.
RO membranes are rated for filtered feed water. A membrane designed to reject salt does not have the physical structure to block coarse sediment. If grit bypasses the pre-filter and reaches the membrane, it scores the feed spacer, compacts the membrane leaf, and accelerates irreversible fouling. A replacement seawater RO membrane costs $300 AUD. A replacement pre-filter cartridge costs $20 to $25 AUD. The maths are straightforward.
Types of Pre-Filter Cartridges
Sediment cartridges come in two common sizes for compact watermakers:
- 2.5 x 5 inch: Used on the LEDI Scout. The matching cartridge is the 2.5 x 5 inch cartridge filter at $25 AUD.
- 2.5 x 10 inch: A longer format that holds more sediment and extends service intervals in very turbid water. LEDI stocks the 2.5 x 10 inch filter cartridges at $20 AUD, along with a compatible 2.5 x 5 inch housing at $40 AUD and a larger 2.5 x 10 inch housing at $50 AUD.
Most cartridges are wound polypropylene or pleated polyester rated at 5 micron. This rating blocks particles larger than 5 microns, which is adequate for typical coastal and offshore seawater. If you operate regularly in silty estuaries, a dual-stage setup with a coarser 20 micron cartridge upstream of the 5 micron cartridge reduces load on the finer filter and extends its life.
How Often Should You Change the Pre-Filter?
There is no single universal answer because service intervals depend on water quality, not just run time. As a practical starting point:
- Clear offshore water: Every 50 to 100 hours of run time, or at the start of each passage season, whichever comes first.
- Coastal and harbour water: Every 20 to 40 hours. Harbours carry far more suspended solids from boat traffic, runoff, and biological activity.
- Estuaries, rivers, or flood-affected water: Inspect after every session. Change as soon as visible discolouration or restriction appears.
- Long-term storage: Fit a fresh cartridge before recommissioning the system, regardless of when the last one was installed.
The most reliable indicator is feed-side pressure. If your stainless steel pressure gauge shows a rising restriction between the intake and the pump inlet, the pre-filter is loading up. Do not wait for it to block completely. A choked pre-filter starves the high-pressure pump of feed flow, causing cavitation and premature pump wear.

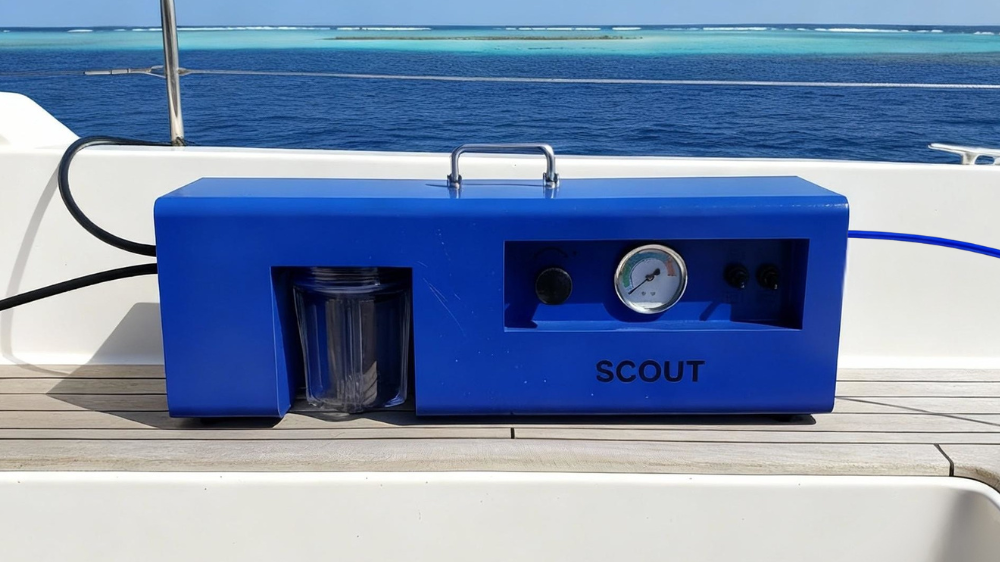

Step-by-Step: Changing the Cartridge on a LEDI Scout
The process takes under five minutes and requires no special tools beyond the housing wrench supplied with the system.
- Stop the watermaker and depressurise the system by opening the product water valve briefly.
- Close the seacock or intake valve to prevent backflow.
- Use the housing wrench to unscrew the filter bowl. Hold the housing head steady and turn the bowl anti-clockwise.
- Remove the spent cartridge. Note the colour and condition. A cartridge heavily loaded with brown or green matter after only a few hours indicates poor source water quality and warrants using a coarser pre-stage.
- Rinse the bowl with clean fresh water. Do not use detergent inside the housing.
- Insert the new 2.5 x 5 inch cartridge, centring it on the standpipe.
- Hand-tighten the bowl, then snug it a quarter turn with the wrench. Over-tightening cracks plastic housings.
- Slowly open the intake valve and check for leaks at the bowl O-ring before restarting.
Keep at least two spare cartridges aboard. They weigh almost nothing and take up minimal storage space.
Pre-Filter Condition as a Diagnostic Tool
A used cartridge tells you a lot about the water you have been processing. A few patterns worth knowing:
- Uniform brown/tan sediment: Normal coastal turbidity. Continue on the current change schedule.
- Green or black slime: Biological growth, usually algae or bacteria. Consider running in cleaner water if possible. Adding a UV steriliser at $420 AUD downstream of the membrane provides an additional safety barrier for the product water.
- Black oily residue: Hydrocarbon contamination from a marina or anchorage. Move your intake or switch to a cleaner source before operating.
- Cartridge appears clean after many hours: Good news, you are in clear water. Extend the interval slightly, but still replace it at the start of every season.
The Link Between Pre-Filtration and Membrane Life
The RO membrane in the LEDI Scout is a precision component. Consistent pre-filtration is one of the most effective ways to extend its working life. For a deeper look at what else affects membrane longevity, including flushing frequency and storage practices, see Watermaker Membrane Lifespan: What Shortens It and How to Make Yours Last for Years and Watermaker Flushing: How Often, Why It Matters, and the Fastest Way to Do It Right.
Pre-filter neglect is one of the leading causes of early membrane failure. Feed water carrying fine particles bypasses a loaded cartridge and reaches the membrane at operating pressure, physically embedding sediment into the membrane surface. Once embedded, it cannot be cleaned out. You end up replacing a $300 membrane because you skipped a $25 cartridge change.
Keeping a Maintenance Log
A simple log in the boat's maintenance book or a notes app on your phone is all you need. Record the date, run hours at the time of the change, and a brief note on cartridge condition. After a season or two you will have a clear pattern for your typical operating waters and can plan cartridge stock accordingly.
For a complete picture of running costs across pre-filters, membranes, and maintenance chemicals at $12 AUD, the article The True Cost of Owning and Maintaining a LEDI Scout Watermaker gives a full breakdown.
Spare cartridges, housings, and all other consumables are available from the LEDI spares collection, and the full system is the LEDI Scout at $4,899 AUD.
Summary
Pre-filter maintenance is low-cost, low-effort, and high-impact. Change cartridges on a schedule that reflects your actual operating conditions, use the cartridge condition as a water quality indicator, and always carry spares. Do that consistently and your RO membrane, your pump, and your watermaker system will give you reliable fresh water for years.
Ready to stock up? Browse replacement cartridges and all watermaker spares in the LEDI store, or explore the LEDI Scout watermaker if you are still choosing a system.
