A 12V watermaker is only as good as the install. Get the plumbing wrong, starve the pump, or undersize the cable, and you will spend more time fault-finding than making water. If you want to know how to install 12V watermaker systems properly, think like a systems builder, not a shopper.
The job is not complicated, but it does punish shortcuts. On a yacht, in a 4WD canopy, or at an off-grid site, the rules stay the same. Clean feed water in, stable DC power, sensible hose runs, proper drainage, and enough access to service the unit without dismantling half the vehicle or tearing apart a locker.
Before you install a 12V watermaker
Start with the layout, not the drill. The best mounting position is rarely the first empty space you spot. You need a location that stays dry, has decent ventilation, allows easy filter changes, and keeps suction lines short. Reverse osmosis systems do not like being buried in a hot, inaccessible compartment beside an inverter and a fuel line.
On a boat, install as low and central as practical without putting the unit where bilge water or spray can get to it. In a touring rig, avoid wheel-arch splash zones, engine-bay heat, and any spot where corrugations will hammer fittings loose. In a cabin or field shelter, protect the unit from dust, freezing temperatures, and accidental impact.
You also need to think through the whole water path. A typical 12V watermaker setup includes a raw water intake, pre-filtration, feed pump, membrane, product water outlet, and brine reject discharge. Some systems package these tightly. Others split components across available space. Either way, the install should make mechanical sense. Long, messy hose runs create pressure loss, air leaks, and service headaches.
How to install 12V watermaker plumbing the right way
The raw water feed is where most bad installs begin. The system must get a reliable supply of source water without sucking air or debris. On a vessel, that usually means a dedicated seawater intake with an appropriate strainer. Sharing intakes can work in some builds, but it often introduces flow issues and maintenance complications. If the watermaker is mission-critical, give it its own feed.
Keep the intake hose run as short and straight as possible. Every bend and every unnecessary fitting increases resistance. On the suction side, small air leaks matter more than many installers realise. A fitting that never drips can still pull air under vacuum and cause pump cavitation, erratic pressure, and poor output.

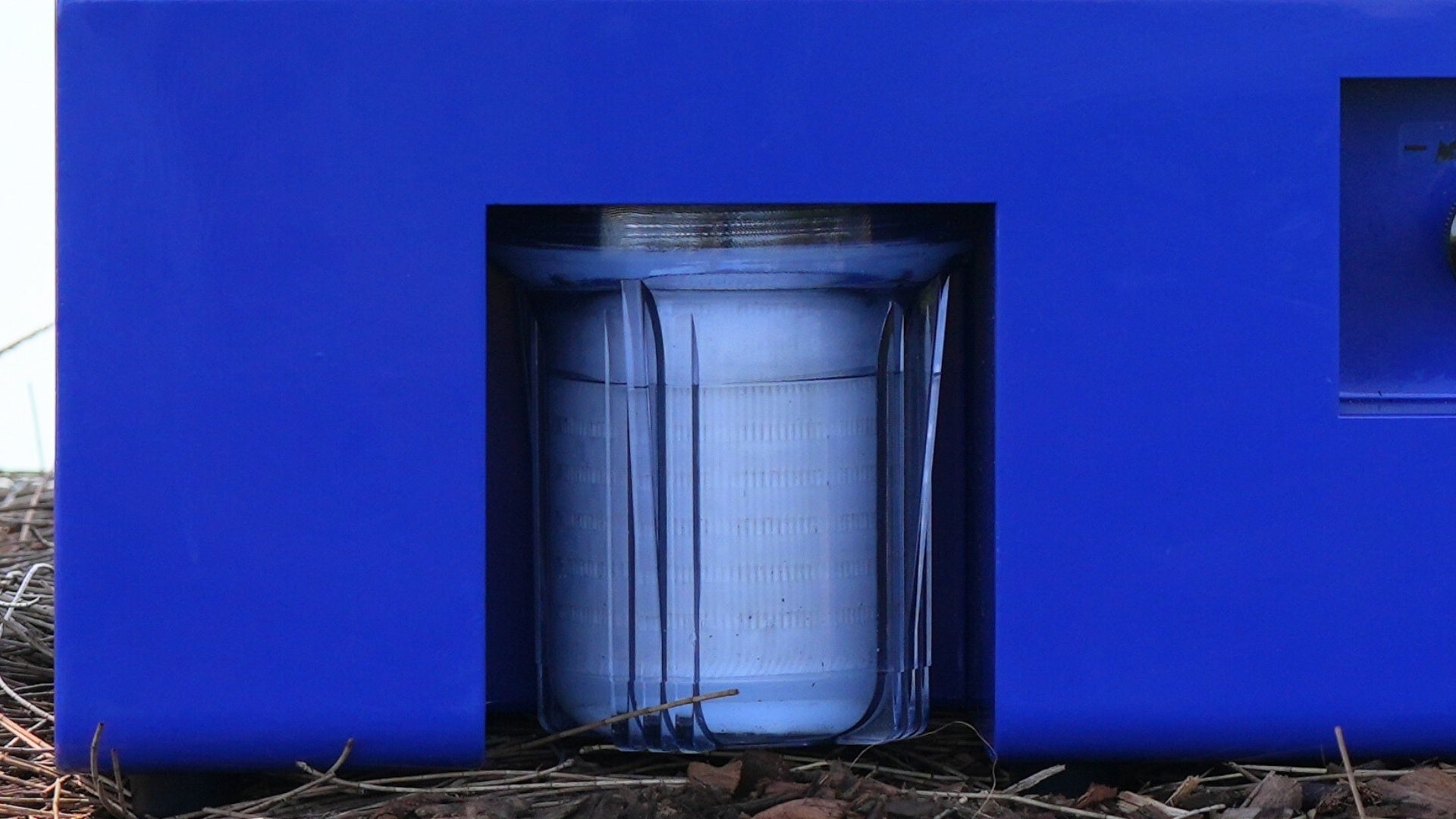

Pre-filters need to be mounted where you can change them quickly. That means upright, accessible, and not hidden behind batteries, stored gear, or cabinetry. If you have to unload half the boat or empty the canopy to swap a cartridge, the install is wrong. Sediment load changes fast between clean seawater, estuaries, and floodwater, so service access is not a luxury.
The brine reject line needs a secure discharge point. On a boat, route it overboard above the waterline where practical and avoid creating back-pressure. In a land-based setup treating brackish or contaminated water, discharge the concentrate safely away from your intake and away from areas where it can create erosion or pooling.
The product water line deserves the same discipline. Run it to a clean storage tank or dedicated drinking water outlet. Do not tee it into questionable plumbing and assume the membrane will solve downstream contamination. If the storage tank is dirty, the water will be dirty. Fit isolation where needed and make sure you can sample product water during commissioning.
Power matters more than most people expect
A 12V system lives or dies on voltage stability. This is where plenty of installs come unstuck. People focus on litres per hour and forget that DC gear is unforgiving when the cable run is long, the battery is tired, or the wire size is wrong.
Use correctly sized cable for the actual current draw and total run length, not what is sitting in the shed. Voltage drop will cost performance and can damage components over time. Follow the manufacturer specification for cable gauge, fuse or breaker size, and termination method. Crimp properly, use marine-grade or high-quality tinned cable in corrosive environments, and support the run so vibration does not work the terminals loose.
The supply should come from a stable battery bank, not from a random accessory circuit that already feeds fridges, lights, pumps, and chargers. If you are running the watermaker from solar-charged batteries, plan for real operating conditions rather than ideal brochure numbers. Cloud cover, heat, compressor cycling, and overnight loads all affect available voltage.
Good DC installs are boring. Short runs, clean terminations, proper circuit protection, and no mystery joins hidden behind trim. That is what you want.
Mounting and vibration control
A watermaker should be mounted solidly, but not hard against a structure in a way that transfers every bit of vibration into the hull, cabinet, or bodywork. Use the supplied mounts or suitable anti-vibration isolation where required. The point is to support the system under load while reducing fatigue in brackets, fasteners, and fittings.
Check the mounting surface before you commit. Thin panels, weak cabinetry, and poorly supported bulkheads can flex enough to loosen connections over time. In a 4WD or trailer boat, dynamic loads are far harsher than static workshop conditions. If the panel moves, the install will eventually move with it.
Leave enough clearance around pumps, filter housings, and membrane vessels for service work. This sounds obvious, but it gets missed all the time. A neat install is not one that hides everything. A neat install is one that can be maintained in the field with basic tools and no swearing.
Commissioning after installation
Once the plumbing and power are complete, do not just hit the switch and walk away. Commission the system in stages. First, inspect every fitting, clamp, cable, and support point. Confirm flow direction on filters and pumps. Check that valves are in the correct positions and that the feed source is clean enough for startup.
Prime the feed side as required by the system design. Dry-running pumps or pressurising an airlocked line is a quick way to create trouble. When you first start the unit, watch pressure build, listen for cavitation, and inspect for leaks under operating load rather than at rest.
Then monitor product flow and water quality. Most systems need an initial flush period before water is suitable for storage or drinking. Follow the unit-specific procedure, especially if preservatives were used in storage or transport. If pressure is low, output is weak, or the pump sounds rough, stop and find the cause before pushing on.
Common mistakes when you install a 12V watermaker
Most failures trace back to a handful of avoidable errors. The first is poor intake design - blocked strainers, shared lines, long suction runs, and fittings that pull air. The second is electrical compromise - undersized cable, weak batteries, or bad connections causing low voltage under load. The third is access - filters mounted where nobody can reach them and components crammed into hot, wet compartments.
Another common mistake is ignoring the source water. A 12V watermaker is not magic. Muddy floodwater, heavy silt, oil sheen, and chemical contamination all change how the system should be operated and filtered. In some cases, extra pre-treatment is required. In others, the right move is not to run the unit until conditions improve. Reliability comes from matching the system to the water, not pretending every source is the same.
Installation choices that depend on your platform
A cruising yacht install usually prioritises corrosion resistance, quiet running, and compact service access. A 4WD tourer often needs shock resistance, low power draw, and fast filter changes in filthy conditions. A remote cabin may have more room, but it still needs freeze protection, sound intake planning, and power budgeting around solar and storage.
That is why there is no single perfect layout for how to install 12V watermaker systems. The principles are fixed. The execution depends on space, water source, duty cycle, and how hard the platform gets worked.
If you are building for serious remote use, keep the install field-serviceable. Use common consumables where possible, label lines, leave access to every service point, and carry the spares that actually stop downtime. That is the logic behind mission-built systems from manufacturers like LEDI Watermakers. No gimmicks. Just a setup you can keep running.
A good install disappears into the background. You do not think about it because it starts, runs, and makes water when you need it. That is the standard to build for, whether you are fitting out a passagemaker, a bush rig, or a remote operations trailer.
