If you have searched "DIY watermaker for boat," you are probably weighing up two things: the cost of a ready-made system versus the satisfaction (and perceived savings) of building one yourself. The honest answer is that a genuine DIY build can work, but it is more involved than most online guides suggest, and the economics are closer than they look. This article walks through what a real DIY reverse osmosis watermaker involves, what it costs, where the risks sit, and when buying a purpose-built portable unit is simply the better call for most Australian sailors.
What a DIY Watermaker Actually Involves
A reverse osmosis watermaker on a boat needs several major components working together reliably under pressure. At a minimum you need:
- A high-pressure pump rated for seawater duty, typically 600 to 1,000 PSI
- An RO membrane housed in a pressure vessel, matched to the pump's flow and pressure
- Pre-filtration, at minimum a 5 micron cartridge filter to protect the membrane
- A needle valve or brine control to set operating pressure
- A pressure relief valve for safety
- A pressure gauge to monitor the system
- Low-pressure fittings for feed and product water, and high-pressure fittings for everything between the pump and membrane
- A TDS meter or inline sensor to verify output quality
- A power supply sized to the pump's draw
You also need to get the sizing right: pump flow rate, membrane specifications, and pressure must be matched carefully. An undersized pump will not push enough pressure to produce water efficiently. An oversized pump will burn through power and stress the membrane. None of this is beyond a capable DIYer, but it is not a weekend project either.
The Real Cost of Building Your Own
This is where most DIY plans come unstuck. People price up the big-ticket items (pump, membrane, pressure vessel) and underestimate everything else. Consider what you need from the LEDI parts range alone:
- A Pumptec 107SS high-pressure pump: $1,550 AUD
- A seawater RO membrane: $330 AUD
- A pressure relief valve: $199 AUD
- A needle valve: $129 AUD
- A pressure gauge: $40 AUD
- Pre-filter housing and cartridge: $30 AUD plus $14.50 AUD
- Inline TDS sensor: $69 AUD
- High-pressure fittings, push-fit fittings, tubing, and a supply pump: add another $200 to $400 depending on your layout
- A UV steriliser if you want to match the safety standard of a commercial unit: $279 AUD
Add it up and you are looking at well over $2,800 in parts before you have bought a pressure vessel, wiring, a project box, or a feed pump. Then account for your time, any mistakes that need correcting, and the cost of testing. The gap between DIY and a complete system narrows fast, and that is before you factor in what happens when something fails at sea.
Where DIY Builds Often Go Wrong
The most common failure points in home-built marine watermakers are not the expensive parts. They are the details:
- Mismatched components: A membrane that needs 800 PSI paired with a pump that tops out at 600 PSI will produce very little water and stress both parts.
- Inadequate pre-filtration: Seawater carries sediment, biological matter, and fine particles. A single 5 micron cartridge is the minimum. Without proper pre-filtration, the membrane fouls quickly and output drops within hours in dirty water.
- Low-pressure fittings used on high-pressure lines: Push-fit fittings are fine for product water and feed lines, but the high-pressure side (between pump and membrane) needs rated stainless compression or DEFLOK fittings. Using the wrong fitting type here is a safety issue.
- No freshwater flush provision: If you do not flush the membrane with fresh water after every use, salt crystals and biological growth shorten membrane life significantly. A DIY system needs a deliberate flush path built in from the start.
- Power management: A 12V high-pressure pump draws 16 to 18 amps. Without proper wiring gauge, inline fuse, and a clean power source, you will get voltage drop, overheating, and unreliable performance.
When a DIY Build Makes Sense
There are situations where building your own is the right call. If you are a liveaboard with an engineering background, time at anchor, access to a proper workshop, and you want a permanently plumbed custom system, a DIY approach (or a LEDI Modular kit) gives you complete flexibility over output, panel placement, and integration with your boat's existing plumbing. The Modular range is configurable from roughly 10 to 80 litres per hour and is designed for below-deck installs in refits and new builds, with a remote control panel and auto freshwater flush. If that is what you are after, contact the LEDI team at info@ledi.com.au to talk through your layout.
If you enjoy the project for its own sake and are comfortable with the time and troubleshooting involved, a DIY build can be deeply satisfying. LEDI sells the individual spare parts and components used in its own systems, so you can source marine-grade, field-serviceable parts without hunting through generic industrial suppliers.
When a Plug-and-Play System Is the Better Answer

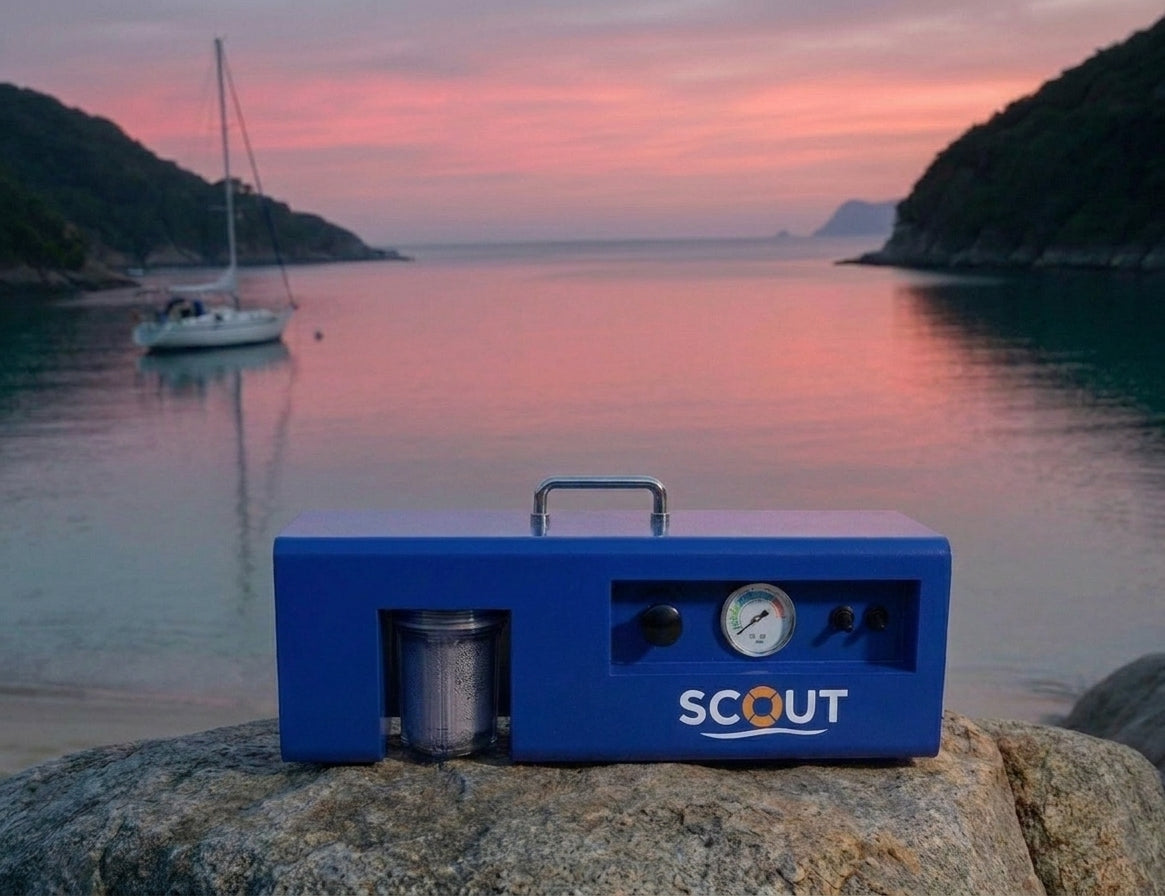

For most sailors, the honest answer is that a purpose-built, tested, and supported system delivers better value and far less stress than a self-build. Consider the LEDI Scout, which starts at $4,899 AUD for the 10 LPH version and $5,799 for the 20 LPH. It comes with:
- A Pumptec 107SS stainless pump already matched to the membrane
- Pre-filtration built in
- Built-in UV sterilisation meeting Australian drinking-water standards
- 99.4% salt rejection, typically producing 250 to 300 ppm TDS output from seawater
- All hoses and fittings included, drop-in and running in minutes
- 18 kg in a single carry case, no installation required
- 12V DC with a 16 to 18A draw, runs on a standard house battery with 200 to 400W of solar, no generator needed
The Scout is tested before it leaves the Gold Coast, built from the same commercial marine-grade parts used in fixed installs that typically run $10,000 to $25,000 installed. Because it uses non-proprietary, off-the-shelf components, every part is field-replaceable and spares are stocked for rapid dispatch Australia-wide and internationally.
For larger crews, liveaboards, or boats with heavier daily water demand, the LEDI Nomad steps up to 40, 60, or 80 LPH. It runs on 12V or 24V DC (240V with a mains adapter), comes with an integrated control panel, TDS monitor, flow meter, and two-stage pre-filtration as standard. Priced from $9,899 AUD for the single-membrane and $10,899 for the double-membrane, it is purpose-built for serious passage making.
What About the Watermaker Install Kit?
If you own a Scout and want to make it semi-permanent or integrate it more cleanly into your boat, the Watermaker Install Kit at $180 AUD is worth looking at. It includes the larger 2.5 x 10 inch pre-filter housing, which holds more dirt than the standard 5 inch cartridge and extends the time between filter changes in silty or coastal water. This is a practical upgrade for anyone who uses their Scout regularly from a fixed position on the boat.
Maintenance Is the Same Either Way
One thing a DIY build does not change is the ongoing maintenance requirements of any RO watermaker. Regardless of whether you build or buy, you will need to:
- Replace the pre-filter cartridge roughly every 10 to 40 hours depending on water clarity (a 2.5 x 5 inch cartridge for the Scout costs $14.50)
- Flush the membrane with fresh water after every use
- Pickle the membrane for storage periods longer than a few days
- Monitor TDS output and replace the membrane when quality or flow genuinely drops (the seawater RO membrane is $330 and with proper care lasts several years)
For more detail on keeping any watermaker running well, see our guides on membrane lifespan, watermaker flushing, and pre-filter maintenance.
Ready to Talk Through Your Options?
Whether you want to build your own system from quality parts or step straight into a tested portable unit, LEDI can help. The team is based on the Gold Coast and you deal with a real person, not a call centre. Reach out at info@ledi.com.au or call +61 494 562 668, or browse the full range at lediwatermaker.com.
