DIY Watermaker for Boat: Build vs Buy Smart

If you have been searching for a DIY watermaker for your boat, you are probably looking for one of two things: a way to save money, or a system you can understand, service, and trust completely. Both are reasonable goals. The honest answer is that building your own reverse osmosis watermaker from scratch is entirely possible, but it rarely saves you money once you factor in time, parts, and the risk of getting the pressure side wrong. This guide walks through exactly what a DIY build involves, where the real costs sit, and why many sailors and cruisers end up choosing a purpose-built portable system instead.

What a DIY Watermaker Actually Involves

A reverse osmosis watermaker has four main sections: the intake and pre-filtration stage, the high-pressure pump, the RO membrane in its pressure vessel, and the product water output (typically with a TDS monitor and UV steriliser). Each section needs to be specified correctly, plumbed with the right fittings, and matched to the others in terms of flow rate and pressure.

The high-pressure side runs at around 800 PSI for seawater. That is not the same as your freshwater plumbing. Every fitting, tube, and valve on the high-pressure side needs to be rated for that pressure, preferably in 316 stainless steel for marine use. A failure here is not a slow drip; it is an immediate problem.

You also need to size the system. A pump that moves too much water will starve your membrane and reduce rejection. A pump that moves too little will under-pressurise the system and produce low output. The pre-filter must be large enough to handle your expected feed water quality without dropping feed pressure. Get this wrong and your membrane pays the price.

The Parts You Need (and What They Cost)

Here is a realistic parts list for a basic single-membrane DIY build:

• High-pressure pump (e.g. a Pumptec 107SS costs $1,550 AUD on its own)
• RO membrane and pressure vessel (a seawater RO membrane starts at $330 AUD)
• Pre-filter housing and cartridge (a 2.5x5" filter housing is $30 AUD, cartridges from $25 AUD)
• High-pressure fittings in 316 stainless (individual fittings and valves add up quickly, from $3.50 to $199 AUD each)
• A 1000 PSI pressure relief valve ($199 AUD) is non-negotiable on the high-pressure side
• A pressure gauge ($40 AUD) to confirm operating pressure
• UV steriliser if you want to meet Australian drinking water standards (a 4 LPM LED UV unit is $279 AUD)
• Intake filter, tubing, wiring, a flow meter, and a TDS monitor

Before you add labour, a realistic parts budget for a DIY 10 LPH system is $2,500 to $3,500 AUD, and that assumes you source everything correctly the first time. Add wiring mistakes, a wrong fitting, one re-order, and a few hours of your time on passage prep and the gap between DIY and a purpose-built unit closes very fast.

Where DIY Builds Tend to Go Wrong

The most common failure point in a DIY watermaker is the pre-filtration stage being undersized for the feed water quality. If the pre-filter blocks and feed pressure drops, the high-pressure pump runs dry. That destroys the pump. A Pumptec 107SS is $1,550 to replace. An auxiliary feed pump helps protect against this, but it adds another component to specify and wire correctly.

The second common problem is membrane damage from incorrect flushing or storage. A DIY build without an autoflush system depends entirely on the skipper remembering to flush with freshwater after every use, and to pickle the membrane before any storage longer than a few weeks. Miss this and the membrane fouls. Replacement membranes are not cheap.

The third issue is pressure vessel and fitting compatibility. High-pressure RO fittings are not universal. Mixing standards (BSP, NPT, compression) without the right adapters causes leaks at pressure. Every leak on the high-pressure side wastes energy and stresses components.

When a DIY Build Actually Makes Sense

There are genuine cases where building your own system is the right call. If you are doing a full refit and want a permanent below-deck install with a remote panel, custom output, and integration into your vessel's existing plumbing, a modular approach makes sense. LEDI's Modular watermaker kit is designed exactly for this: a configurable system from around 10 to 80+ LPH with a remote control panel and auto freshwater flush, built from the same commercial marine-grade components as any fixed install but without the overseas distributor markup.

If you already have a pump and some components from a previous system, a partial DIY using quality spare parts from a local supplier can also be cost-effective. LEDI stocks spare parts and accessories including filters, membranes, valves, pressure vessels, pumps, and fittings, and the team can advise on compatibility rather than leaving you to guess.

The Smarter Alternative for Most Sailors

For most cruisers, trailer sailors, and liveaboards who want reliable fresh water without a full refit, a purpose-built portable system eliminates the risk and complexity of a DIY build without costing significantly more once you account for parts and time.

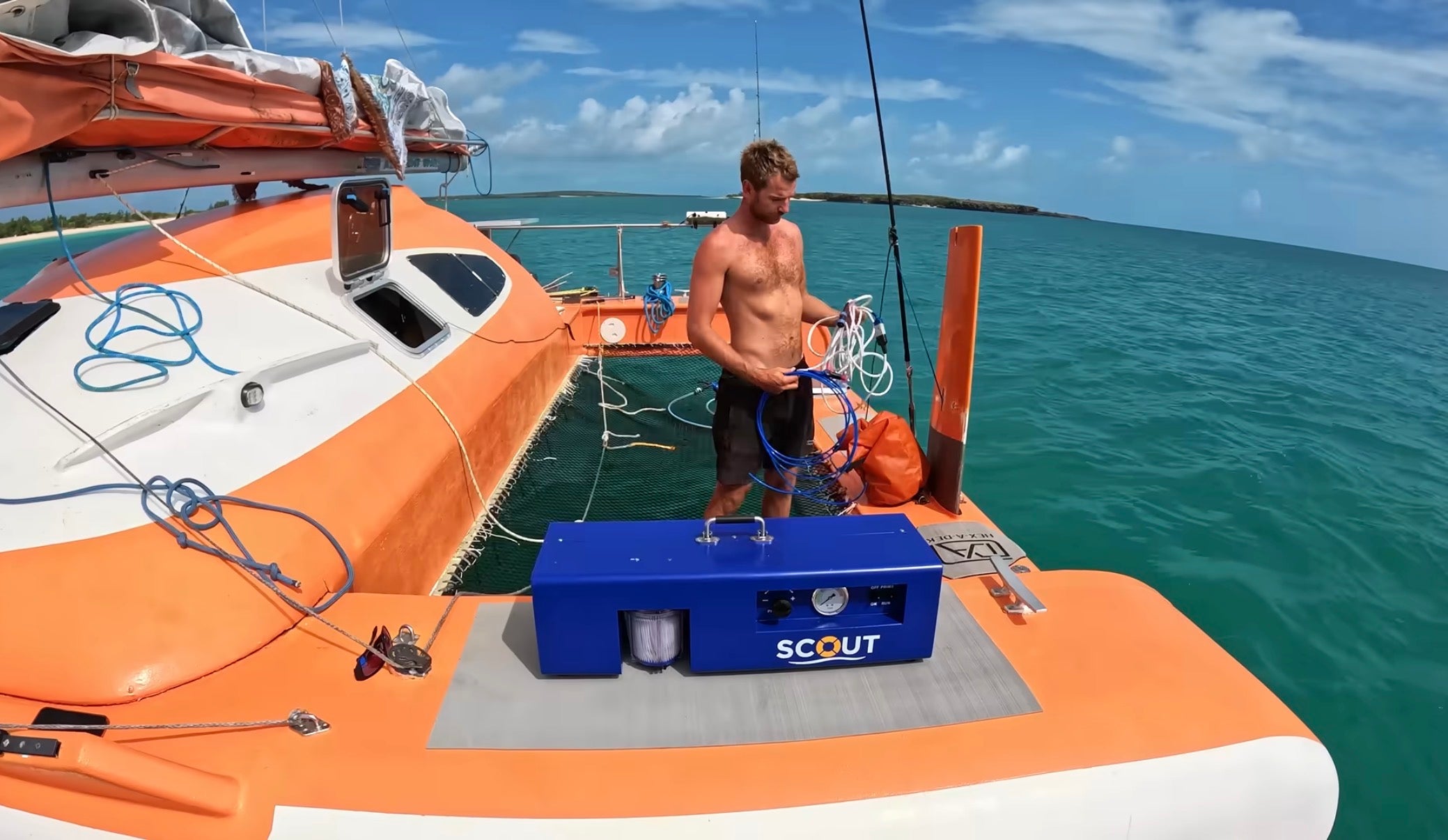

The LEDI Scout starts from $4,899 AUD for the 10 LPH model and $5,799 AUD for the 20 LPH. It uses the same Pumptec 107SS pump and commercial-grade RO membrane you would source for a DIY build, pre-assembled and tested on the Gold Coast. Drop the stainless intake over the side, connect the supplied hoses, and you are making water in minutes. No install, no custom plumbing, no generator. It runs on 12V DC at 16 to 18A, which a normal house battery bank with 200 to 400W of solar handles comfortably. Built-in UV steriliser included. The whole unit weighs 18 kg and one person can carry it.

For bigger crews or heavier daily use, the LEDI Nomad steps up to 40, 60, or 80 LPH with a Cat Pumps direct-drive plunger pump, integrated TDS monitor and flow meter, two-stage pre-filtration, and autoflush compatibility, from $9,899 AUD. It handles liveaboard use, charter, and longer offshore passages where a 20 LPH output is not enough.

Running Costs and Maintenance Are the Same Either Way

Whether you build or buy, the ongoing maintenance is identical: change the pre-filter when feed pressure drops or output falls (roughly every 10 to 40 hours depending on water quality), flush with freshwater after every use, and pickle the membrane for any storage longer than a few weeks. A 2.5x5" pre-filter cartridge for the Scout is $25 AUD. The larger 2.5x10" cartridge is $20 AUD and holds more dirt between changes, which is useful in silty or murky conditions.

The RO membrane is not a routine consumable. With proper flushing and storage it lasts several years. When output or water quality genuinely drops off, a replacement membrane is $330 AUD. Every part on a LEDI system is non-proprietary and field-replaceable. Spares ship Australia-wide and internationally, usually within one business day.

Talk to Someone Who Knows the Systems

The biggest difference between buying from LEDI and ordering a pile of parts from various suppliers is that you deal with a real person. If you want to discuss whether a DIY build or a purpose-built unit suits your boat and budget, call +61 494 562 668 or email info@ledi.com.au. The team can look at your power setup, your daily water needs, and your passage plans and give you a straight answer, not a sales pitch.

For further reading, the articles on how to install a 12V watermaker, watermaker pre-filter maintenance, and watermaker membrane lifespan cover the practical detail that matters regardless of which route you take.
